Troubleshooting the ‘CPE Connection Failed’ Warning on Grandstream IP Phones

by

Understanding the CPE Connection Failed Warning and How to Address It

If you’ve encountered a CPE Connection Failed warning on your Grandstream IP phone, you might be wondering what it means and how to resolve it. In this article, we’ll break down the cause of this warning and provide a simple solution to prevent the message pop-up from appearing again.

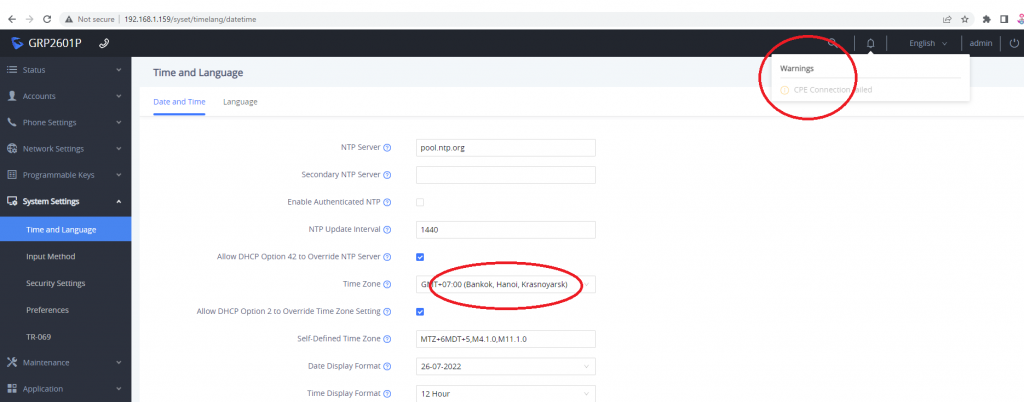

Figure 1 shows the ‘CPE Connection Failed’ warning when logging to the Web UI of the IP Phones

What Does CPE Connection Failed Mean?

The term “CPE Connection Failed” refers to a situation where your phone cannot establish a connection with its TR-069 server or provisioning server. TR-069 (Technical Report 069) is a protocol commonly used by devices to communicate with an auto-provisioning server, such as the Grandstream Device Management System (GDMS). When this connection cannot be established, the warning message is triggered.

How to Get Rid of the CPE Connection Failed Warning

Fortunately, resolving this issue is straightforward if you don’t need the TR-069 provisioning feature. You can disable it entirely to prevent the warning from reappearing. Here’s how:

  1. Access the Web UI of your IP phone.
    • Open a web browser and enter the IP address of your phone.
    • Log in using your administrator credentials.
  2. Navigate to System Settings and select TR-069 from the menu.
  3. Uncheck the TR-069 option.
  4. Save your changes and reboot the phone.
Disable TR069 to prevent CPE Connection Failed Warning in Grandstream phones
Figure 2. Uncheck the Enable TR-069 option in the GRP260X series

Additional Tips

If you require TR-069 for remote management or provisioning purposes:

  • Verify the provisioning server settings in the phone’s configuration.
  • Ensure the server list and port are reachable from your network.
  • Check for firmware updates.
